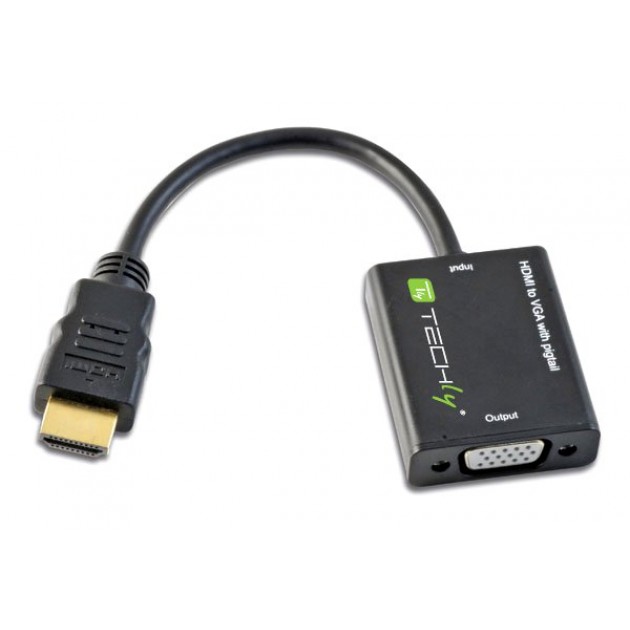

HDMI to VGA converter

Product Description

• Easy to install, it does not need any driver configuration
• HDMI to VGA video conversion
• Supports 165MHz/1.65Gbps per channel (6.75Gbps all channels)
• Supports analog output up to 1080p with 10-bit DAC.
• Compatibile HDCP

Specifiche
• Video input signal: 0.5-1.0 volts p-p
• DDC input signal: 5 volts p-p (TTL)
• Input connector: HDMI A male (19pin)
• Output connector: VGA Female
• HDMI video format input: 480p/576p/720p/1080p
• VGA output format: 480p/576p/720p/1080p
• Vertical frequency range: 50/60Hz
• Video band amplitude: 1.65Gpbs/165MHz

Physical data:
• Dimension (WxHxD): 38 mm x 8 mm x 460 mm
• HDMI cable length: 100 ± 10 mm
• Net Weight: 0,037 ± 0.001kg

General information
• Operating temperature: from 0° to +70°C
• Operating humidity: from 10% to 85% RH (without condensing)
• Storage temperature: from -10° to +80°C
• Storage Humidity: from 5% to 95% RH (without condensing)
• Max power 2W

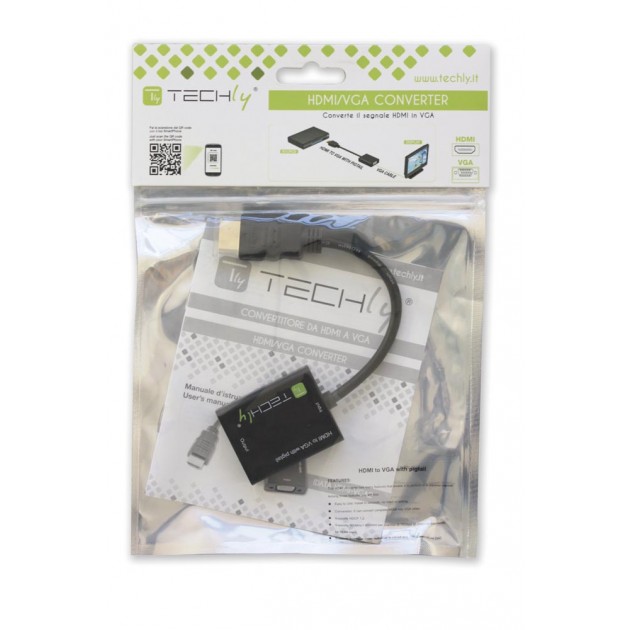

Package:
• HDMI to SVGA converter
• Operating manual
